Anchor Winch vs Windlass vs Mooring Winch - Technical Differences

By Peter January 28th, 2026 543 views

1.Why These Terms Are Often Confused

In marine engineering and procurement, the terms anchor winch, windlass, and mooring winch are frequently used interchangeably. However, from a technical and functional perspective, they refer to different types of equipment, each designed for a specific role within the vessel’s anchoring and mooring system.

Misunderstanding these differences can lead to:

incorrect equipment selection
non-compliance with class rules
operational inefficiency
safety risks during anchoring or mooring

A clear technical distinction is therefore essential.

2.Windlass: The Anchoring-Specific Machine

2.1 Technical Definition

A windlass is a machine specifically designed for handling anchors and anchor chains. It is typically installed on the forecastle deck and forms a core component of the anchoring system.

From a technical standpoint, a windlass is characterized by:

a gypsy (chain wheel) matched to anchor chain size and pitch
a braking system capable of holding high static loads
a drive system optimized for low-speed, high-torque operation

In many classification rules, the term windlass is the official designation for anchor-handling machinery.

2.2 Functional Scope

A windlass is designed to:

pay out anchor and chain in a controlled manner
hold the anchor chain under environmental loads
retrieve the anchor and chain from the seabed

It is not intended for continuous line handling or mooring line operations.

2.3 Typical Technical Features

vertical or horizontal configuration
electric or hydraulic drive
chain stopper integration
high-capacity brake system

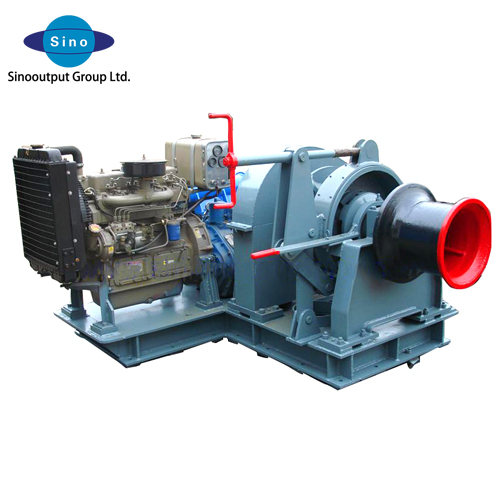

Diesel-driven single wheel Anchor windlass

3.Anchor Winch: A Practical Engineering Term

3.1 Technical Interpretation

The term anchor winch is commonly used in engineering communication and procurement to describe anchor-handling equipment. In most technical contexts, anchor winch refers to a windlass, although the terminology is less strict.

From a functional perspective:

an anchor winch performs the same role as a windlass
it is designed primarily for anchor and chain handling
it must comply with the same class requirements as a windlass

3.2 When the Term “Anchor Winch” Is Used

The term anchor winch is often used:

in commercial quotations
in shipyard internal documents
when describing compact or combined anchor-handling units

Despite the naming difference, technical requirements remain identical to those of a windlass.

Sinooutput Hydraulic Horizontal Anchor Winch

4.Mooring Winch: A Different Operational Purpose

4.1 Technical Definition

A mooring winch is designed for handling mooring lines, not anchor chains. It plays a critical role in securing the vessel alongside a berth, quay, or offshore structure.

Key technical distinctions include:

use of wire ropes or synthetic mooring lines, not chains
continuous or intermittent line handling capability
lower static holding requirements compared to anchor systems

4.2 Functional Scope

A mooring winch is used to:

tension and adjust mooring lines
maintain vessel position during berthing
compensate for tide and draft changes

It is not designed to:

hold anchor chain loads
withstand anchor break-out forces
operate with chain wheels

4.3 Typical Technical Features

drum-based line handling
warping head for manual assistance
constant-tension or auto-tension options
electric or hydraulic drive

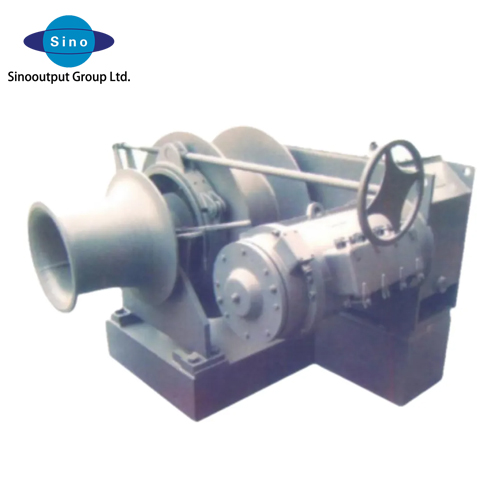

Electric Mooring Winch for Ship and Boat with Drum Load 30-400KN Marine Winch Windlass

5.Key Technical Differences at a Glance

Item	Windlass	Anchor Winch	Mooring Winch
Primary function	Anchor & chain handling	Anchor & chain handling	Mooring line handling
Chain wheel (gypsy)	Yes	Yes	No
Mooring drum	Optional	Optional	Yes
Brake capacity	Very high	Very high	Moderate
Load profile	Static + dynamic	Static + dynamic	Mainly dynamic
Class rules	Anchoring rules	Anchoring rules	Mooring rules

6.Combined Anchor & Mooring Winches

On some vessels, especially workboats, offshore vessels, and smaller commercial ships, a combined anchor and mooring winch may be used.

Technical Characteristics:

integrated gypsy and mooring drum
compact footprint
reduced equipment count

Engineering Considerations:

load cases must be clearly defined
anchoring and mooring operations must not overlap
class approval must explicitly cover combined use

Combined systems require careful specification to avoid compromise in safety.

7.Classification and Compliance Considerations

From a classification standpoint:

windlasses / anchor winches are governed by anchoring equipment rules
mooring winches are governed by mooring equipment rules

Key compliance aspects include:

rated pulling capacity
brake holding force
material and welding standards
testing and inspection procedures

Equipment naming does not replace compliance. Function and load case determine classification requirements.

8.Common Specification Mistakes

specifying a mooring winch for anchor handling
underestimating anchor chain break-out force
mismatching gypsy with chain size or grade
assuming combined winches automatically meet anchoring rules

These mistakes often lead to inspection findings or operational limitations.

9. Conclusion

Although the terms anchor winch, windlass, and mooring winch are sometimes used interchangeably, they represent distinct equipment types with different technical roles.

In summary:

a windlass is the correct technical term for anchor-handling machinery
an anchor winch is a commonly used practical term with the same function
a mooring winch is designed exclusively for mooring line operations

Correct understanding and selection of these systems is essential for:

vessel safety
regulatory compliance
long-term operational reliability

For newbuilds, refits, or equipment upgrades, technical evaluation of anchoring and mooring systems should be carried out early in the design stage to ensure correct equipment selection and class compliance.
