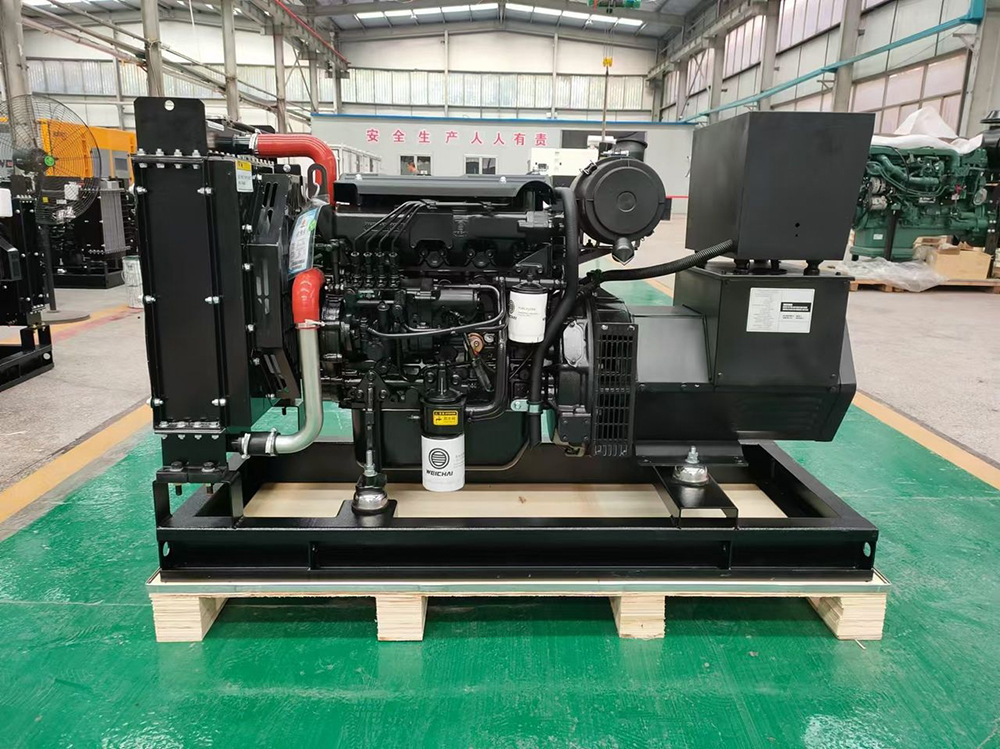

When designing a Marine Generator Set, the proper selection of the engine and alternator is the most critical step. These two core components directly determine the generator set’s performance, reliability, fuel efficiency, and compliance with international maritime regulations. A well-matched configuration ensures stable power supply, long service life, and safe operation under harsh marine conditions.
Below are the key principles and considerations when selecting engines and generators for marine generator sets.
The engine’s rated output power should be 10%–20% higher than the generator’s required input power. This margin allows for starting current impact, transient load changes, and long-term stable operation without overloading the engine.
The selected engine should be compatible with the vessel’s existing fuel system, such as HFO, MDO, MGO, or LNG. Fuel consistency simplifies onboard fuel management and reduces operational complexity.
Marine generator engines typically operate at 1500 rpm for 50Hz systems or 1800 rpm for 60Hz systems. The engine speed must precisely match the alternator pole configuration to ensure stable output frequency.
Engines must be approved by recognized classification societies such as ABS, DNV, LR, CCS, etc., and comply with international maritime regulations, including IMO Tier II / Tier III emission standards where applicable.
Most marine engines adopt a closed fresh-water cooling system combined with seawater heat exchangers. This design improves corrosion resistance, enhances heat dissipation efficiency, and extends engine service life.

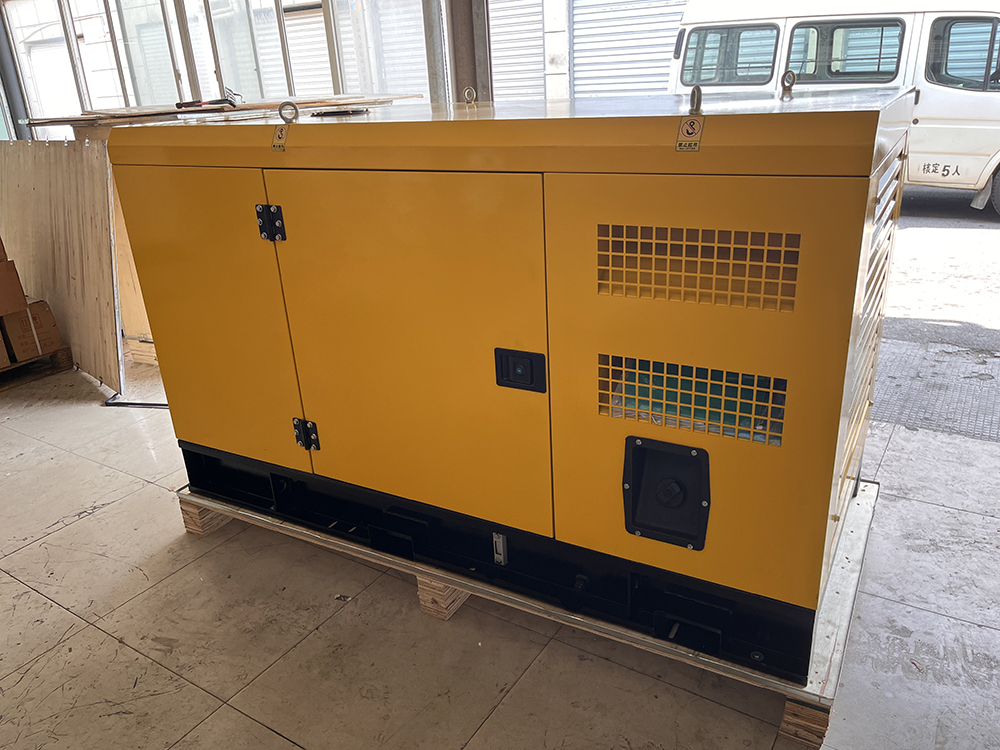

Due to limited engine room space, noise and vibration control are essential. Elastic mounting systems, vibration isolators, and soundproof enclosures are commonly applied to meet onboard comfort and safety requirements.
The alternator must support maximum continuous load plus starting surge load, especially for large electric motors such as windlasses, winches, and pumps. An optimal operating load range of 70%–80% of rated capacity is recommended.
Marine alternators should provide excellent voltage regulation and frequency stability to protect sensitive onboard electronics and automation systems from power fluctuations.
Typical marine alternators use Class F or Class H insulation. The minimum recommended protection level is IP23, while IP44 or higher is preferred for humid, salty, or harsh marine environments.
For vessels operating multiple generator sets in parallel, alternators must support synchronization and load sharing, enabling automatic power management and improved operational efficiency.
Marine alternators should withstand short-term overloads and fault conditions. Common requirements include the ability to operate at 150% rated current for 10 seconds, ensuring system stability during abnormal conditions.
Alternators are typically air-cooled or air-to-water cooled. For compact engine rooms and enclosed installations, closed-loop water-cooled alternators are often preferred.
Generator set dimensions must suit the engine room layout, allowing sufficient clearance for maintenance access, exhaust routing, ventilation, and lifting operations.
The control systems for the engine and alternator must be fully compatible and meet the vessel’s automation level requirements, including unattended engine room (UMS) operation if required.
Marine generator sets must comply with IMO environmental regulations. In certain applications, SCR systems, DPFs, or other after-treatment solutions may be necessary to meet emission limits.
Cooling water, exhaust, fuel, and lubrication system interfaces should be standardized and well-integrated with the vessel’s onboard systems to simplify installation and future maintenance.
Selecting well-established brands with global spare parts availability and technical support significantly reduces downtime and ensures reliable long-term operation.
A properly designed marine generator set depends on precise matching between the engine and alternator, as well as careful consideration of operational, environmental, and regulatory requirements. By following these selection principles, shipowners and shipyards can achieve a reliable, efficient, and compliant power generation solution suitable for modern marine applications.
