Segmented shipbuilding is one of the most widely used methods for constructing large vessels. Instead of building an entire ship as one structure, the hull is divided into multiple blocks or sections. These blocks are fabricated, outfitted, inspected, and finally assembled into a complete vessel.
This modular approach improves production efficiency, quality control, and resource utilization, while creating a strong foundation for digital and intelligent shipbuilding.
The process begins with detailed ship design using CAD, CAE, and 3D modeling technologies. Engineers divide the vessel into suitable blocks based on its structure, size, weight, and construction requirements.
Typical blocks include:
Each block has defined dimensions, interfaces, and technical specifications.
The manufacturing process generally includes material preparation, structural assembly, welding, outfitting, and inspection.
Shipbuilding steel or aluminum is cut and formed according to production drawings. Plates, frames, stiffeners, and other structural components are then assembled and welded.
Modern shipyards increasingly use CNC cutting machines, automated welding equipment, laser measurement, and robotic systems to improve accuracy and production efficiency.
A major advantage of block construction is that equipment and systems can be installed before the blocks are assembled into the hull.
Pipes, cables, valves, ventilation ducts, equipment foundations, and other components can be pre-installed while the block is still on the production floor.
This reduces the amount of work required in narrow and difficult-to-access spaces after hull assembly.
Completed blocks are transported to the assembly area using heavy-duty trailers, barges, or other specialized equipment.

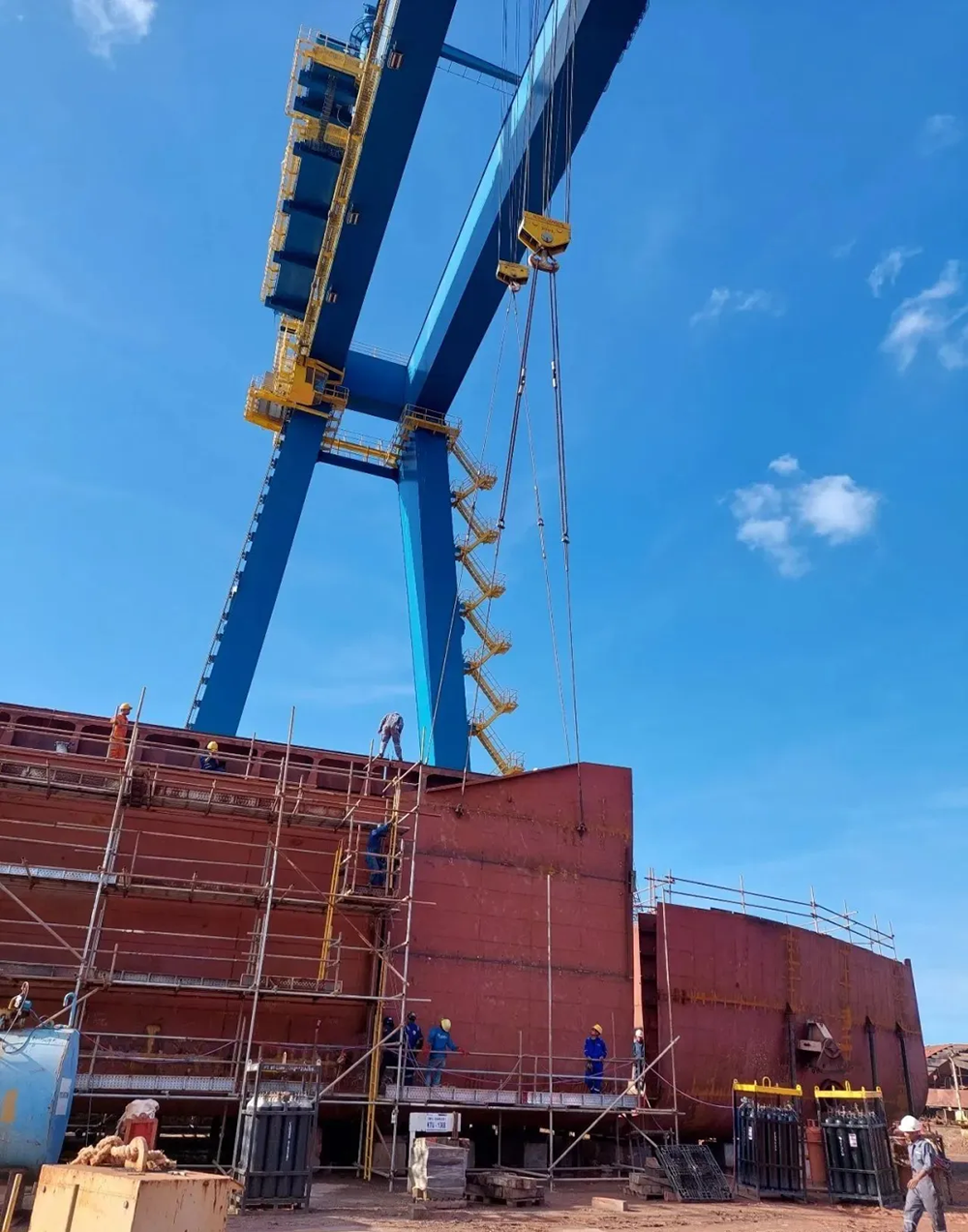

Large cranes then position the blocks precisely. Laser measurement and digital surveying systems help ensure accurate alignment before the blocks are welded together.

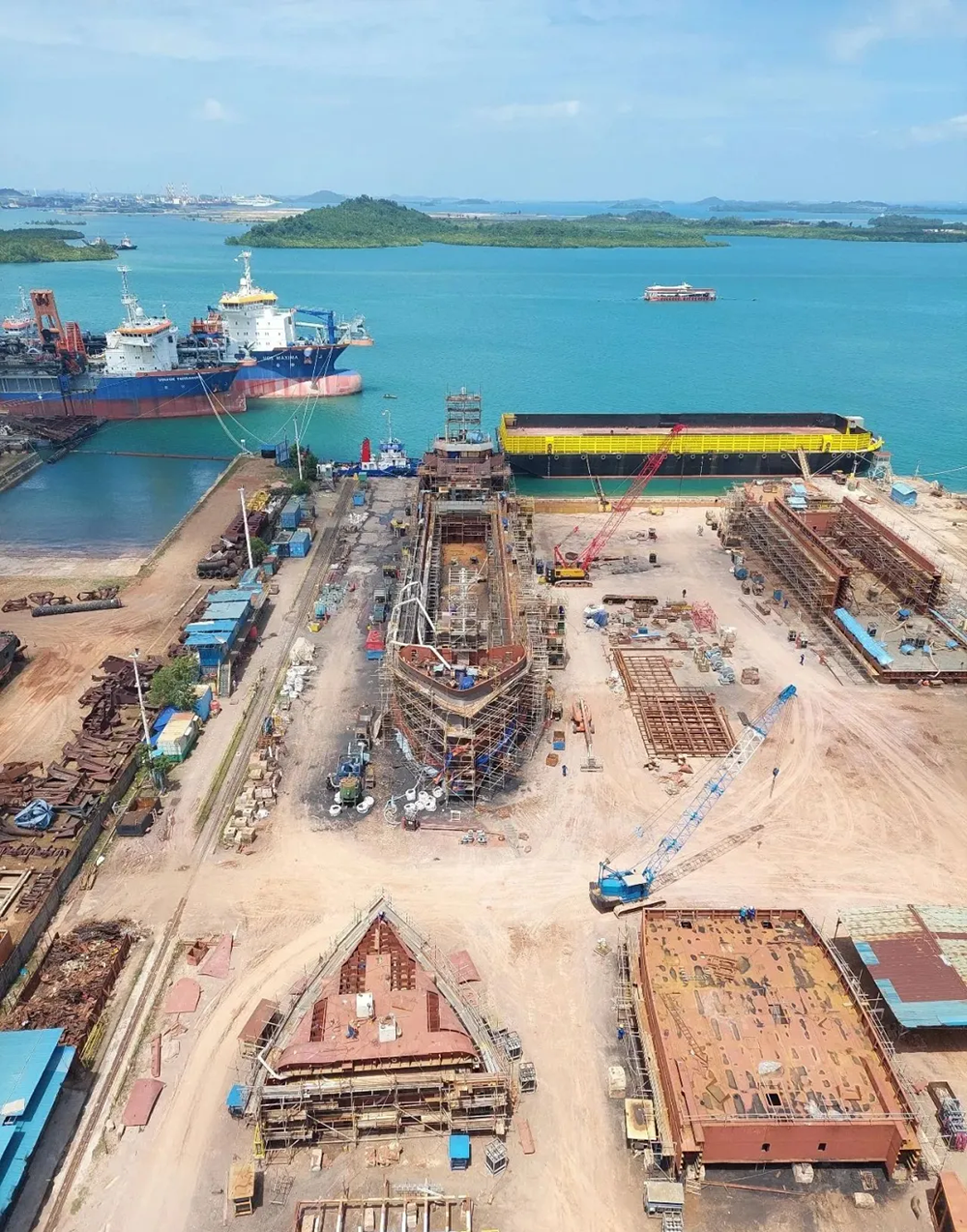

Step by step, individual blocks become a complete hull.

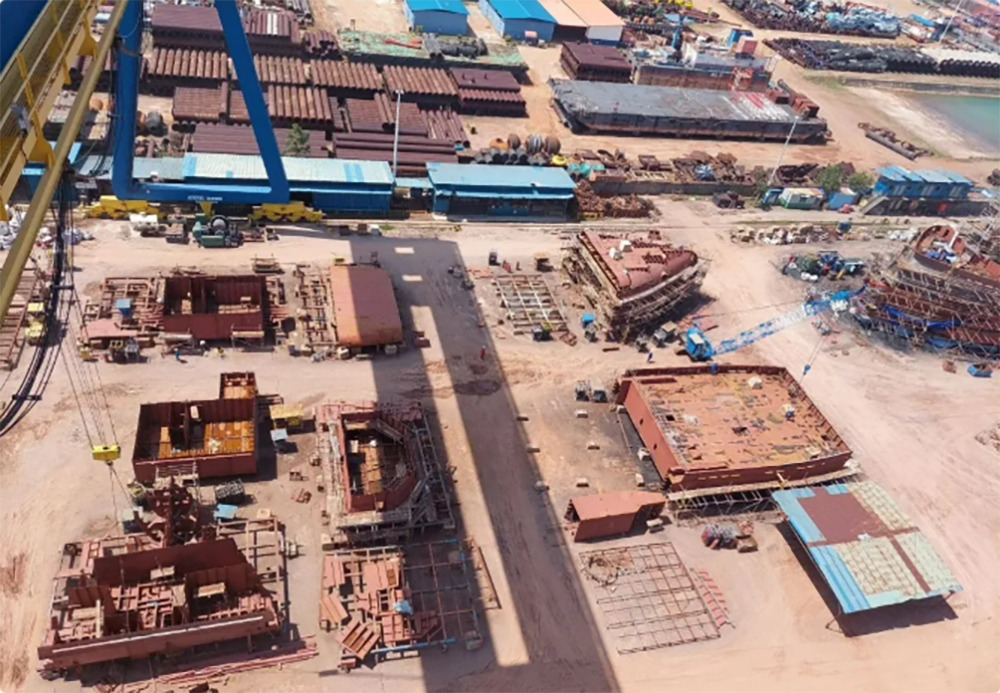

Multiple blocks can be manufactured simultaneously by different teams and production lines. This parallel workflow can significantly shorten the overall shipbuilding schedule.
Each block can be inspected independently before final assembly. Welding quality, dimensions, coatings, and equipment installation can therefore be checked at an early stage, reducing costly rework later.
Because construction is modular, design changes or equipment modifications can often be focused on specific blocks rather than affecting the entire vessel.
Block production can be distributed among different workshops or qualified production facilities according to their equipment, workforce, and manufacturing capabilities.
Segmented construction is widely used for:
For LNG carriers, for example, extremely high precision is required because LNG is stored at approximately -162°C. Block construction and pre-outfitting help shipyards manage these complex structural and equipment requirements more efficiently.
Ultra-large container ships can also contain hundreds of blocks, many of which are heavily pre-outfitted before final assembly.
Digitalization is transforming segmented shipbuilding.
3D modeling and virtual assembly can identify structural and equipment clashes before production begins. Robotic welding and automated cutting improve consistency, while laser measurement and machine vision provide more accurate quality control.
Meanwhile, digital twin technology can simulate block transportation, lifting, assembly, and outfitting, helping shipyards reduce construction risks and improve production planning.
Green manufacturing is another important direction, with greater attention to energy efficiency, environmentally friendly coatings, material utilization, and waste reduction.
Segmented shipbuilding is more than simply dividing a ship into several pieces. It is a modern manufacturing philosophy built around modular design, parallel production, pre-outfitting, precise assembly, and digital technologies.
From LNG carriers and ultra-large container ships to offshore and specialized vessels, block construction plays a vital role in modern shipbuilding.
As automation, robotics, AI, and digital twins continue to develop, shipbuilding will become increasingly efficient, precise, and intelligent.
Build smarter. Build faster. One block at a time.
