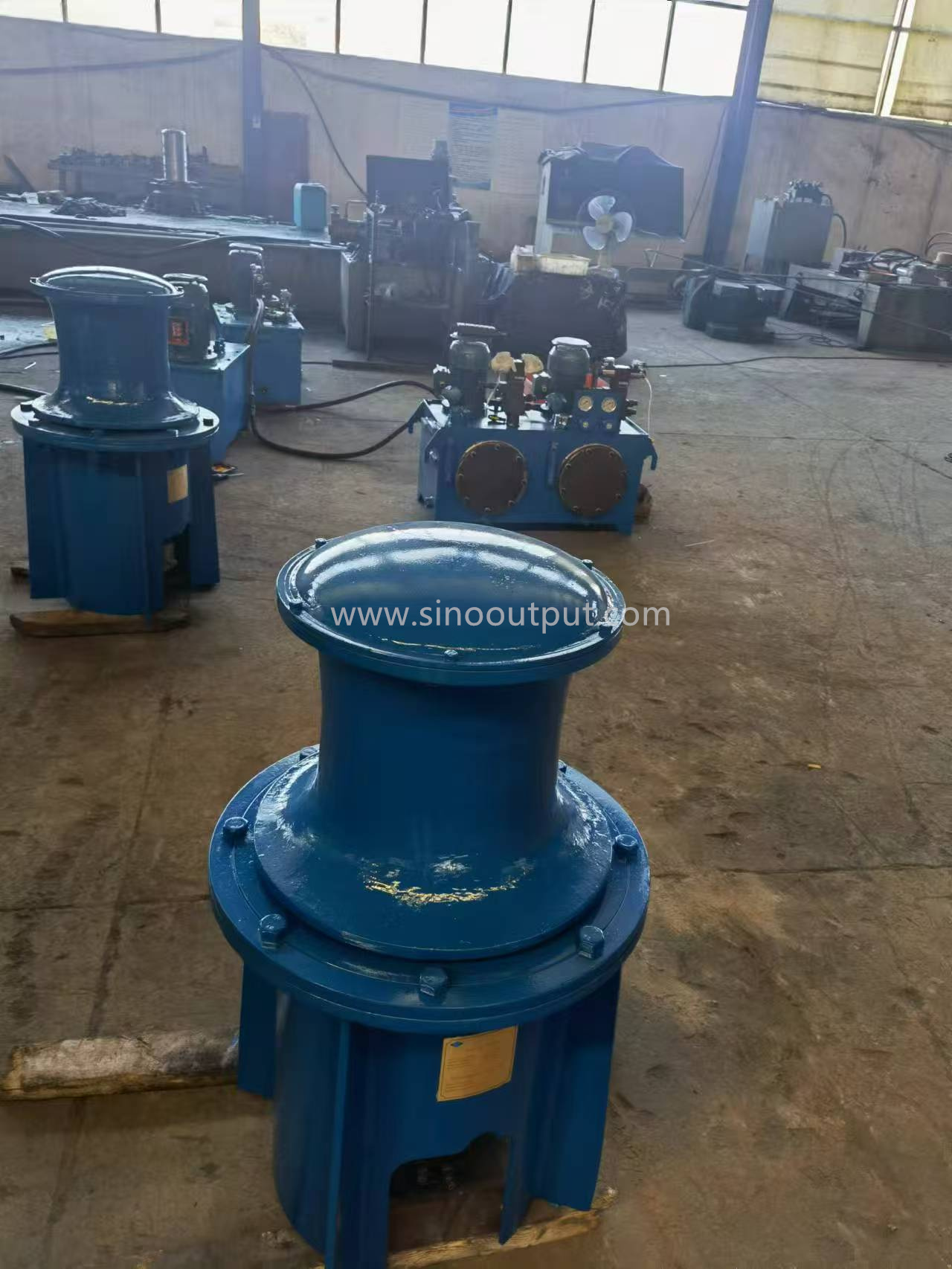

In the demanding world of maritime operations, mooring systems stand as the critical interface between vessel and port. Sinooutput combines decades of hydraulic expertise with marine-grade engineering to deliver solutions that don’t just meet standards—they redefine them. Our flagship 20kN Electro-Hydraulic Mooring Winch
(Model: SINO-VHW20) embodies this philosophy, merging brute-force capability with intelligent hydraulics. Below, we dissect its innovation, performance, and the science behind its reliability.
Why Sinooutput’s Winch? Beyond Specifications1. Engineered for Extreme Marine Environments
Corrosion-Resistant Build: All critical components (winch head, motor housing, support frame) use ISO 12944-C5-M-certified marine coatings.
Modular Design: Pump station and winch head can be spatially optimized on cramped decks.
Global Compliance: Meets IMO MSC.1/Circ.1175, SOLAS, and ABS/GL/DNV class rules.
2. Performance That Outperforms
Parameter Value Industry Advantage
Rated Load 20 kN Ideal for mid-sized cargo vessels
Overload Capacity 60 kN (300% safety margin) Best-in-class surge protection
Cable Speed ≥10 m/min (under full load) 25% faster than comparable models
Drum Efficiency 86% Minimizes energy waste & heat generation
Motor Torque Density 2500 ml/r @ 10.6 MPa High power-to-weight ratio
Decoding Sinooutput’s Hydraulic Mastery: The SINO-VHW20 System
The heart of the winch—a purpose-built hydraulic system—operates at 10.6 MPa working pressure with a 14.4 MPa safety valve threshold, ensuring fail-safe operations even under shock loads.
Intelligent Component Synergy
Hydraulic Motor (Item 17):
Direct-drive design eliminates gear losses.
Compatible with ISO VG 46/68 hydraulic fluids (-20°C to 80°C).
Manual Proportional Control Valve (Item 18):
Precision flow control for smooth acceleration/deceleration.
Key Tip: Port A/B orientation must face the motor (swap if reel-in direction reverses).
Balancing Valve (Item 19):
Prevents uncontrolled cable release during load shifts.
Model: LHXM1401.5-40 (tested to 20,000 cycles).
Piston Pump + LUX Motor (Items 27-28):
Self-priming capability reduces cavitation risk.
Thermal sensors monitor fluid health in real-time.
Oil Management System:
Air Filter (Item 25): HEPA-grade particulate removal.
Float-Level Controller (Item 16): Prevents dry-running.
Operational Excellence: Protocols Matter
Pre-Launch Checklist (Non-Negotiable)
Mechanical: Confirm fastener torque values (per ISO 898-1).
Hydraulic: Check fluid cleanliness (NAS Class 8 or better).
Environmental: Clear 1.5m radius around the winch.
