A Practical Comparison for Marine Fuel and Lubricating Oil Treatment
1.Why These Three Systems Are Often Compared
In marine engine rooms, disc centrifuges, decanter centrifuges, and filters are all used to remove impurities from fuel oil and lubricating oil. Because they all deal with “cleaning oil,” they are often assumed to be interchangeable.
In reality, these systems are designed for very different separation tasks, and using the wrong one can lead to:
Understanding the fundamental difference in how they work is the key to selecting the right solution.
2.Disc Centrifuge: Precision Separation for Clean Oil
2.1 How a Disc Centrifuge Works (In Simple Terms)
A disc centrifuge uses very high rotational speed and a stack of conical discs to separate liquids and solids.
Inside the bowl:
-
oil flows in thin layers between discs
-
centrifugal force pushes heavier water and solids outward
-
clean oil flows inward and exits continuously
This design maximizes separation efficiency in a compact space.
2.2 What Disc Centrifuges Are Best At
Disc centrifuges are ideal for:
-
separating water from oil
-
removing fine solid particles
-
maintaining continuous oil cleanliness
This makes them the core purification equipment for:
-
marine fuel oil systems
-
lubricating oil systems
2.3 Limitations of Disc Centrifuges
Disc centrifuges are not designed for:
When contamination levels are too high, separation efficiency drops and sludge discharge becomes excessive.
3.Decanter Centrifuge: Handling Heavy Sludge and Solids
3.1 How a Decanter Works
A decanter centrifuge operates at lower speed than a disc centrifuge but is built to handle large volumes of solids.
Inside the decanter:
-
solids are continuously conveyed by a screw
-
liquid and solid phases are separated mechanically
-
thick sludge can be discharged continuously
3.2 What Decanters Are Best At
Decanter centrifuges excel at:
Typical marine-related uses include:
-
sludge tank treatment
-
oily waste processing
-
bilge sludge handling
3.3 Limitations of Decanters
Decanters are not suitable for:
They do not provide the separation precision required to protect fuel injection systems or engine bearings.
4.Filters: Simple and Familiar, but Limited
4.1 How Filters Work
Filters rely on physical barriers (mesh, cartridges, elements) to trap solid particles as oil passes through.
They are simple, inexpensive, and easy to understand.
4.2 What Filters Are Good For
Filters are effective for:
-
removing larger solid particles
-
acting as final protection before sensitive components
-
providing redundancy in oil systems
They are commonly used:
4.3 Limitations of Filters
Filters cannot:
As contamination increases:
Filters alone are not sufficient for marine fuel or lubricating oil purification.
5.Side-by-Side Comparison (Simplified)

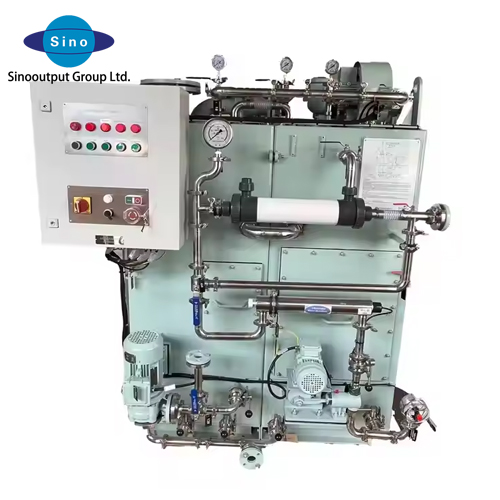

High Quality 15 Person Water Treatment Machinery Marine Sewage Plant with CE Certificate
