Marine Disc Centrifuge Selection Guide
How to Choose the Right Disc Centrifuge for Shipboard Applications
1.Why Disc Centrifuge Selection Is Not a Simple Purchase Decision
A marine disc centrifuge is not just an auxiliary machine in the engine room. It is a continuous protection system that directly affects engine reliability, fuel quality, and long-term operating cost.
When a disc centrifuge is incorrectly selected, the consequences are usually not immediate, but cumulative:
-
water slowly enters fuel or lubricating oil systems
-
fine particles circulate through pumps and bearings
-
wear increases gradually
-
failures appear months later and are difficult to trace
For this reason, disc centrifuge selection should be approached as a system-level engineering decision, not a price-driven purchase.
2.First Step: Clearly Define the Application
Before comparing models or capacities, it is essential to answer one basic question:
What is the centrifuge expected to clean?
This determines almost every technical requirement that follows.
2.1 Fuel Oil Application — Why Requirements Are More Demanding
Fuel oil centrifuges are used to treat:
-
Heavy Fuel Oil (HFO)
-
Marine Diesel Oil (MDO)
-
Marine Gas Oil (MGO)
Fuel oil typically contains:
This means the centrifuge must be capable of:
-
handling high contamination loads
-
operating at elevated temperatures
-
maintaining stable separation under varying conditions
In practice, fuel oil centrifuges are more heavily loaded than lube oil centrifuges and require careful capacity and automation selection.
2.2 Lubricating Oil Application — Focus on Precision and Stability
Lubricating oil centrifuges are mainly used to:
-
remove fine wear particles
-
separate water caused by condensation or leakage
-
maintain oil cleanliness over long operating periods
Unlike fuel oil systems:
For lubricating oil, separation efficiency is often more important than throughput.
3.Capacity Selection: Understanding Flow Rate vs Separation Quality
One of the most common misunderstandings is assuming that bigger capacity is always better.
In reality, disc centrifuges rely on residence time — the time oil spends inside the rotating bowl.
3.1 How to Estimate Required Capacity
Capacity should be determined based on:
A centrifuge that is too small:
A centrifuge that is too large:
The correct choice balances flow demand and separation time.
3.2 Why Overloading Reduces Performance
When flow rate exceeds design limits:
-
water droplets do not fully separate
-
fine solids remain suspended
-
oil quality gradually degrades
This is why manufacturers always specify maximum recommended throughput, not just mechanical limits.
4.Oil Properties: Viscosity, Density, and Temperature
4.1 Why Viscosity Matters
Centrifugal separation becomes less effective as oil viscosity increases.
To compensate:
If oil is too viscous:
Correct temperature control is therefore essential.
4.2 Density Difference and Its Practical Impact
Separation works best when there is a clear density difference between oil and water.
For heavy fuels with small density margins:
This is why some fuels are more difficult to purify despite similar appearance.
5.Separation Mode: Purifier vs Clarifier Explained Simply
This is another area where confusion is common.
5.1 Purifier Mode — When Water Must Be Removed
In purifier mode, the centrifuge separates:
-
oil
-
water
-
solid contaminants
This mode is typically used for:
Correct configuration (such as gravity disc selection) is essential for stable operation.
5.2 Clarifier Mode — When Focus Is on Solids
In clarifier mode:
This mode is often used for:
Choosing the wrong mode can result in poor system performance even if the centrifuge itself is correctly sized.
6.Automation Level: Matching Equipment to Crew and Operation
6.1 Manual Systems — What They Mean in Practice
Manual centrifuges:
-
require frequent crew attention
-
rely heavily on operator experience
-
are more sensitive to operating errors
They may be acceptable on small vessels, but not ideal for modern commercial operations.
6.2 Automatic Systems — Why They Reduce Risk
Automatic centrifuges:
-
discharge sludge automatically
-
maintain stable operation
-
reduce dependence on manual intervention
For vessels with:
-
unmanned engine rooms
-
reduced crew
-
long voyages
automation is not a luxury — it is a risk-control measure.
7.Sludge Handling: Often Overlooked but Critical
Sludge volume depends on:
-
fuel quality
-
operating hours
-
contamination level
If sludge discharge capacity is insufficient:
Effective sludge handling supports stable long-term operation.
8.Materials, Balance, and Mechanical Quality
Disc centrifuges operate at very high rotational speeds.
This means:
-
material quality affects fatigue life
-
precision machining affects vibration
-
balance quality affects bearing life
Poor mechanical quality may not be obvious initially but leads to:
-
noise
-
vibration
-
premature failure
9.Integration with Ship Systems
A centrifuge must integrate smoothly with:
Poor integration often causes operational inconvenience rather than immediate failure, but still increases risk.
10.Maintenance and Lifecycle Perspective
When selecting a centrifuge, consider:
A slightly higher upfront cost often results in lower lifecycle cost and fewer operational disruptions.
11.Typical Selection Mistakes — and Why They Happen
Common errors include:
-
selecting based on tank size instead of flow demand
-
ignoring viscosity-temperature relationship
-
assuming all centrifuges behave the same
-
underestimating sludge volume
-
choosing automation levels inconsistent with crew capability
Most mistakes occur because selection is rushed or treated as a purchasing task instead of an engineering one.
12.Conclusion: How to Make the Right Decision
Choosing a marine disc centrifuge requires understanding:
A correctly selected centrifuge:
-
protects engines continuously
-
stabilizes fuel and oil quality
-
reduces maintenance burden
-
supports long-term, reliable operation
For shipowners, shipyards, and technical managers, disc centrifuge selection should always be viewed as a long-term system investment, not a short-term equipment decision.
Anti-pollution Equipment

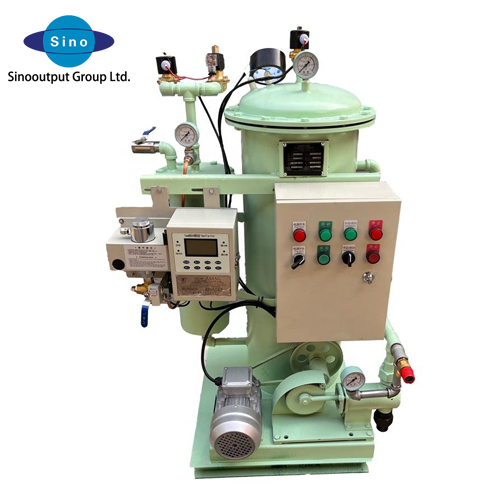

15ppm 0.1m3/h Marine Oily Water Separator
