The electrical system on a vessel is the backbone of safe and efficient marine operations. From propulsion support systems to navigation, communication, cargo handling, and accommodation services, a stable electrical supply ensures uninterrupted performance at sea.

Modern ship electrical systems are designed for reliability, redundancy, and automation—minimizing downtime while maximizing safety.

1️⃣ Key Components of Ship Electrical Systems

⚡ Power Generation System

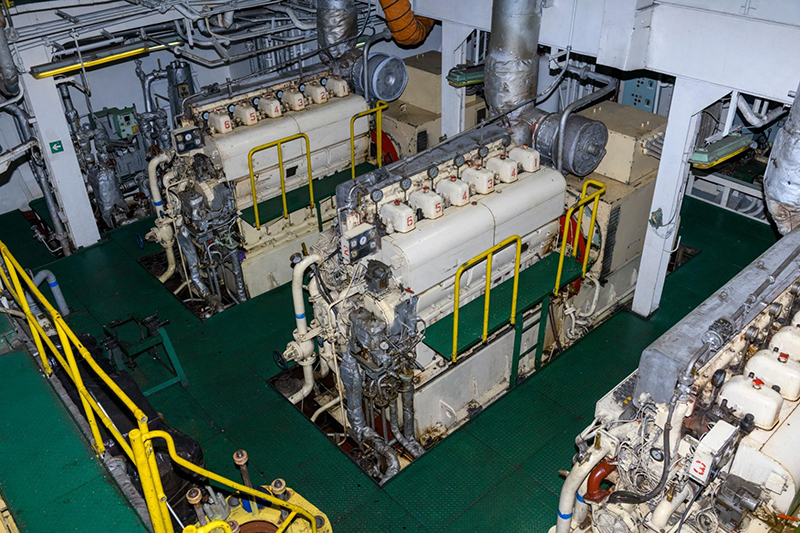

Main Generators
Provide electrical power during normal operations. Typically driven by diesel engines or connected to the main propulsion system.

Emergency Generators
Automatically start during main power failure to ensure supply to critical systems such as navigation lights, steering gear, fire pumps, and communication systems.

Battery Banks
Used for backup power, control systems, engine starting, and emergency lighting.

🔌 Power Distribution System

The distribution system ensures safe and efficient delivery of electricity across the vessel.

It includes:

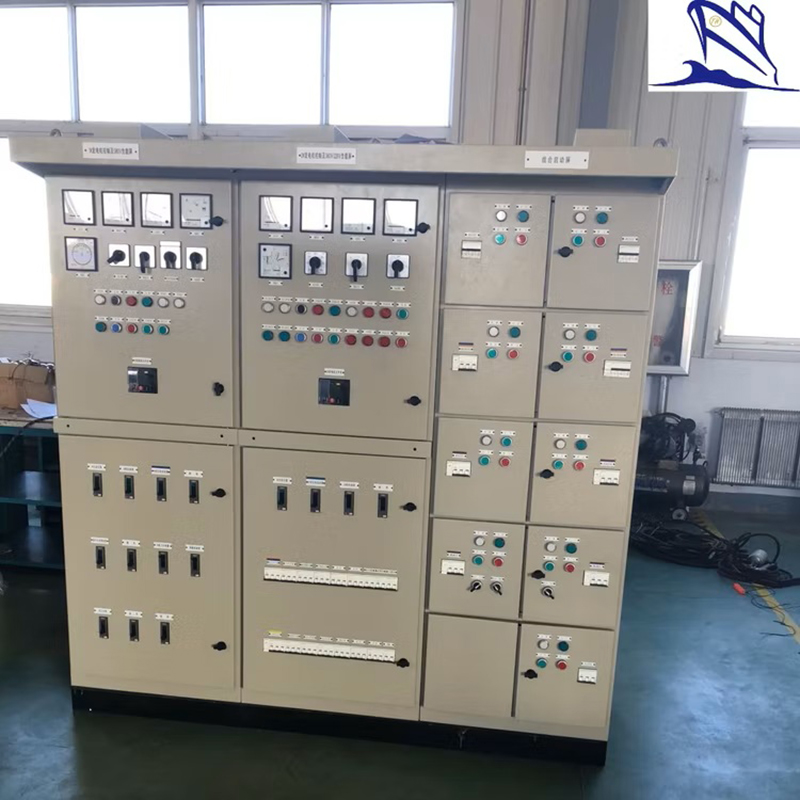

• Main switchboards

• Emergency switchboards

• Circuit breakers

• Protection relays

• Busbars

This system manages voltage control, protection coordination, and load distribution.

🔄 Transmission Network

A complex network of marine-grade cables connects generators, switchboards, and loads. Cables are selected based on:

• Voltage rating

• Current capacity

• Fire resistance

• Environmental resistance (oil, vibration, humidity)

💡 Electrical Loads

Shipboard electrical loads include:

• Navigation equipment

• Radar and communication systems

• Lighting systems

• Pumps and compressors

• Winches and cranes

• HVAC systems

Proper load calculation ensures the generator operates within safe limits.

2️⃣ Types of Marine Generators and Working Principles

AC vs DC Generators

• AC Generators (Alternators) – Most commonly used on modern vessels.

• DC Generators – Used in older systems or specific applications.

Working Principle: Electromagnetic Induction

When the rotor rotates (driven by the prime mover), it creates a rotating magnetic field. This magnetic field induces alternating current in the stator windings.

Key parameters:

• Rated Voltage

• Rated Current

• Frequency (50Hz / 60Hz)

• Power Factor

• Output Power (kW / kVA)

3️⃣ Alarm and Safety Protection for Prime Mover Engines

Modern generator engines are equipped with protection systems to prevent catastrophic damage.

Common protections include:

• Overspeed protection

• Low lubricating oil pressure alarm

• High cooling water temperature alarm

• Overcurrent protection

• Short-circuit protection

Routine functional tests (such as overspeed simulation) are essential to verify reliability.

4️⃣ Emergency Stop Failure Diagnosis

If an emergency stop fails:

1. Verify that the stop signal reaches the solenoid valve.

2. Inspect wiring and control circuits.

3. Check mechanical linkage.

4. Examine fuel shutoff mechanism.

Systematic troubleshooting reduces downtime and prevents operational risks.

5️⃣ Daily and Periodic Generator Maintenance

Routine inspection ensures long service life.

Daily Checks:

• Oil level

• Cooling system

• Vibration and abnormal noise

• Bearing temperature

Periodic Maintenance:

• Replace filters

• Inspect carbon brushes

• Clean slip rings

• Test insulation resistance

• Check AVR performance

6️⃣ Measuring Insulation Resistance

Before performing insulation testing:

⚠ Disconnect:

• Automatic Voltage Regulator (AVR)

• Excitation circuits

High test voltage may damage semiconductor components.

Insulation resistance ensures:

• No moisture contamination

• No winding deterioration

• No short circuits

7️⃣ Synchronizing Marine Generators for Parallel Operation

Parallel operation improves redundancy and fuel efficiency.

Synchronization Conditions:

• Voltage equality

• Frequency match

• Phase sequence alignment

• Phase angle matching

Manual synchronization requires a synchronizing meter to prevent reverse power or mechanical shock.

8️⃣ Load Sharing and Automatic Load Shedding

In parallel systems:

• Adjust fuel input to balance active power.

• Adjust excitation to balance reactive power.

Automatic Load Shedding disconnects non-essential loads when overload is detected, maintaining stability for critical systems.

9️⃣ Automatic Generator Control in Modern Ships

Modern vessels feature fully automated power management systems (PMS) that provide:

• Automatic generator start/stop

• Automatic load sharing

• Voltage and frequency regulation

• Blackout prevention

• Fault monitoring and protection

This improves safety and operational efficiency.

🔋 10️⃣ Battery Management and Maintenance

Ship batteries (acidic or alkaline) require:

• Electrolyte level monitoring

• Terminal cleaning

• Corrosion prevention

• Regular charge/discharge cycles

• Ventilation control

Poor battery maintenance can compromise emergency systems.

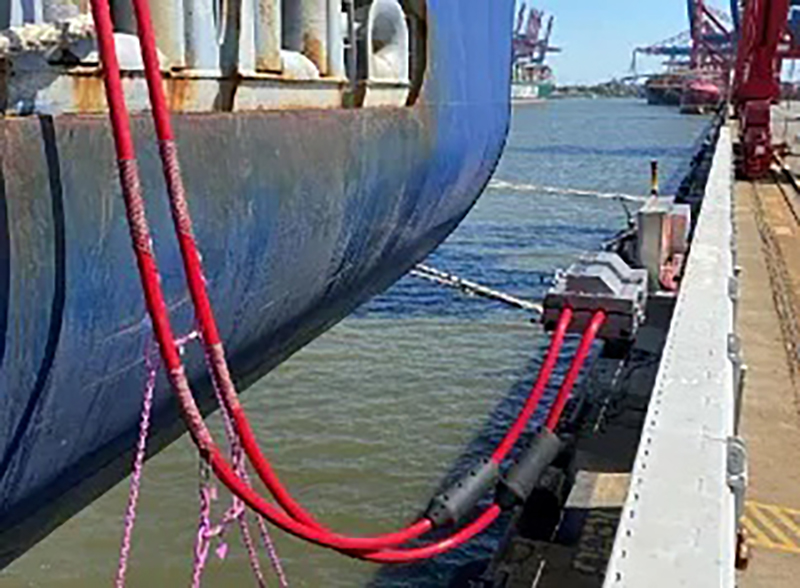

⚓ 11️⃣ Shore Power Connection Considerations

When connecting to shore power:

• Confirm voltage compatibility

• Confirm frequency compatibility

• Check phase sequence

• Ensure proper grounding

Incorrect connection may damage onboard equipment.

Best Practices for Reliable Ship Electrical Systems

✔ Maintain regular inspection schedules
✔ Conduct protection system testing
✔ Keep detailed maintenance logs
✔ Train crew on emergency procedures
✔ Use certified marine-grade components
✔ Monitor load trends to prevent overload

Ship electrical systems are complex, safety-critical infrastructures that demand proper design, operation, and maintenance. From generation and distribution to synchronization and battery management, every component plays a vital role in ensuring uninterrupted power supply.

A well-maintained electrical system not only improves operational efficiency but also enhances safety, reduces downtime, and extends equipment lifespan.
