Sinooutput steering system in accordance with the "Rules for Steel Ships" (2012) and "Steel River and sea Ships and Construction" (2009) on the steering gear in the requirements for the design, the use of open-type valve hydraulic system and swing cylinder piston to push the rudder mechanism, with a variety of valve type or autopilot servo steering instrument to match the ship's steering control system components, and thus responsible for maintaining the ship changed course and tasks. Here this catalog is mainly for the manpower steering system no more than 1000hp*2 power ships.
Sinooutput's manual hydraulic steering gear is a core steering device specifically designed for vessels under 1000hp*2.
Strictly adhering to international shipping regulations and classification society standards, it combines the advantages of manual operation and hydraulic transmission, balancing emergency reliability with ease of daily operation.
It is widely adaptable to various high-horsepower vessels, including transport ships, workboats, and engineering vessels, meeting the core needs of precise course control, long-term stable operation, and safe emergency steering. It is the preferred solution for steering systems of small to medium-sized high-horsepower vessels.
This product breaks free from fixed specification limitations. The overall installation dimensions, length, and layout can be flexibly customized according to the vessel's cabin space, hull design, and installation requirements.
Functional configurations and accessory selections can also be fully tailored to the customer's actual usage scenarios and navigation conditions, achieving perfect compatibility with the vessel's power and control systems.
Sinooutput Core Advantages for the Manual Hydraulic Steering System: (I) Dual Modes of Manual and Hydraulic Control, Maximizing Safety Redundancy: The product adopts an integrated design of manual control and hydraulic assistance. It combines the advantages of hydraulic transmission—efficiency, low power, and precise steering—easily handling the high-torque steering demands of high-horsepower vessels with effortless operation. Simultaneously, it retains a pure manual emergency steering function. Even if the ship's power system or hydraulic pump station malfunctions, steering can still be completed manually, preventing accidents caused by steering failure during navigation. This dual protection ensures safe navigation and meets the requirements of ship emergency handling regulations.
(II) Compatible with Dual 1000 Horsepower, Maximizing Power Matching: Optimized for the high torque and high-load steering characteristics of dual 1000 horsepower vessels, the hydraulic system boasts strong pressure resistance and ample steering torque. It can quickly respond to steering commands and precisely control the rudder angle, handling scenarios such as high-speed navigation, heavy-load navigation, and complex waterway turning. Steering is smooth and without jamming, and return to position is precise and without deviation. It perfectly matches the power output of dual-horsepower vessels, ensuring accurate and reliable heading control and smoother navigation.

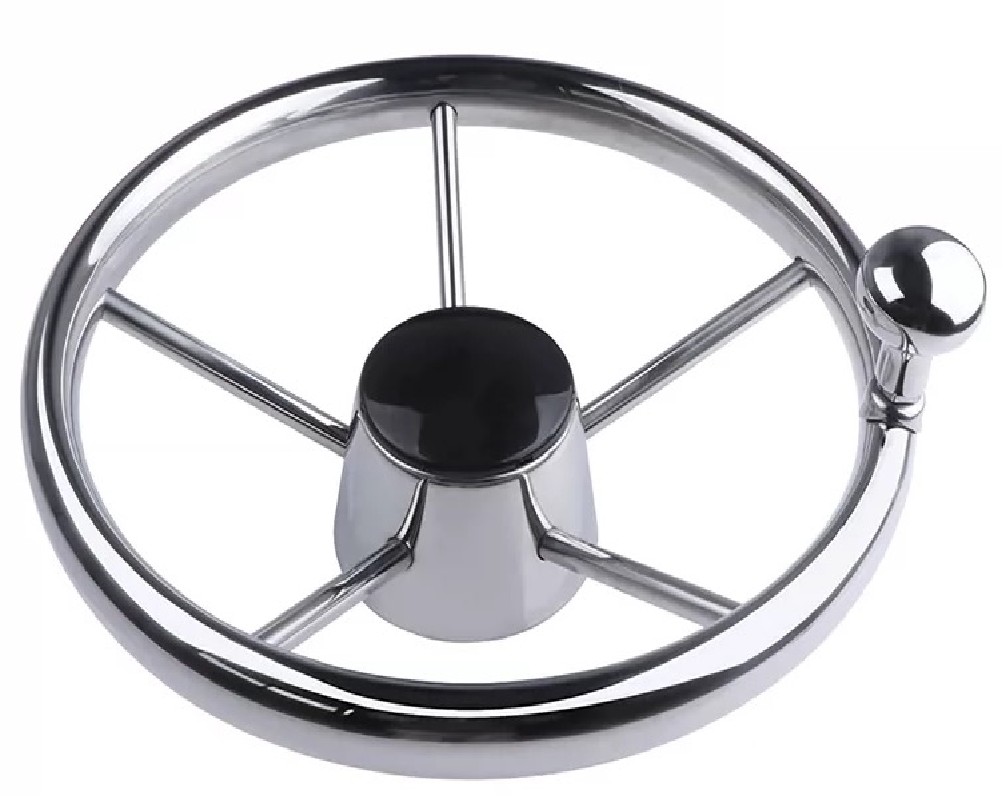

(III) Full-Dimensional Customization, Adaptable to Various Ship Designs 1. Size Customization: All dimensional parameters, including overall length, installation spacing, hull height, and piping layout, can be designed one-to-one according to the ship's cabin space, hull structure, and installation location. Precise installation is possible without hull modifications, maximizing space savings. 2. Function Customization: Customizable modules such as rudder angle indicators, emergency locking devices, hydraulic pressure stabilization systems, and remote control interfaces can be added to expand the product's application scenarios and meet professional and personalized steering needs. 3. Component Customization: Core hydraulic components, sealing assemblies, control handwheels, pipe joints, and other components can be flexibly selected based on customer budget, ship navigation area (seawater/freshwater), and durability requirements. All components are high-quality marine parts, balancing cost-effectiveness and durability.
(IV) Durable Structure and Convenient Maintenance The product is manufactured using high-strength, corrosion-resistant marine steel. Core hydraulic components undergo precision machining and multiple quality inspections. The sealing system uses leak-proof, anti-aging special seals, adapting to harsh marine environments such as seawater, humidity, and high salt spray. It is resistant to wear, rust, and oil leaks during long-term operation, resulting in a long service life. The overall structural design is simple and compact, with no complex or redundant components. Routine maintenance requires no special tools, and inspection, maintenance, and replacement of vulnerable parts are simple and convenient, effectively reducing the ship's later operation and maintenance costs and workload, and minimizing downtime.
(V) Easy, Precise, and Efficient Operation The hydraulic power steering system significantly reduces the effort required for manual steering. Even with prolonged continuous steering, there is no noticeable fatigue. The operation is light and smooth; the rudder response is fast, and the rudder angle control is precise, allowing for minute angle adjustments. It perfectly adapts to the precise steering, fixed-point berthing, obstacle avoidance, and other refined control needs of high-horsepower vessels, enhancing the ship's navigation and control experience.
